Maintaining Frameless Glass Shower Door Hinges: A Complete Guide

Maintaining Frameless Glass Shower Door Hinges: A Complete Guide

Frameless shower doors are valued for their clean aesthetics and solid, minimalist feel. Whether your installation uses glass-to-glass hinges or glass-to-wall hinges, regular maintenance is essential to keep the door operating smoothly, reduce stress on the glass, and prolong the lifespan of the hardware. Over time, small adjustments, cleaning, and replacement of consumable components such as hinge gaskets may be required. This guide explains what to expect, how to look after your hinges, and how to safely carry out minor corrections should the door ever drop or move out of alignment.

1. Understanding Frameless Shower Hinges

Frameless shower hinges are precision-engineered components designed to support the weight of heavy glass without a frame. There are two main types:

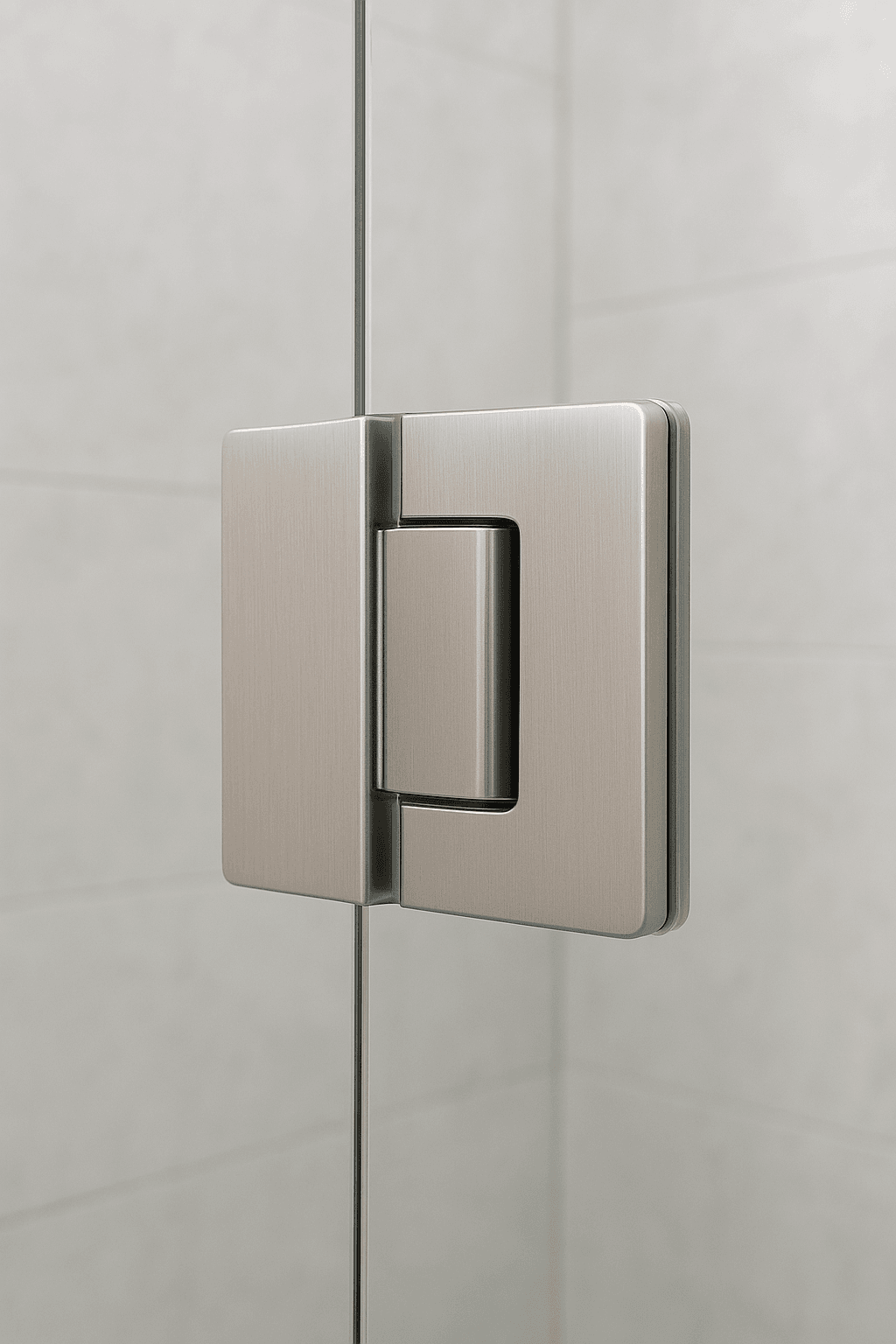

Glass-to-Glass Hinges

These connect a door panel directly to a fixed glass panel. The hinge clamps around the two glass edges using hinge plates and gaskets, allowing a secure, junction while maintaining an uninterrupted frameless look.

Glass-to-Wall Hinges

These fix the shower door directly to a tiled or solid wall substrate. One side of the hinge clamps onto the glass, and the other is mechanically fastened to the wall using screws and wall plugs.

Both types rely on gaskets (or hinge pads) to protect the glass from metal-to-glass contact and ensure grip.

2. Routine Maintenance to Keep Hinges Performing at Their Best

Frameless hinges are extremely durable, but like any mechanical component exposed to water, steam, and cleaning products, they benefit from occasional maintenance.

A. Cleaning the Hinges

Use warm water and a mild, non-abrasive cleaner.

Wipe down with a soft cloth—avoid scouring pads which can damage coatings.

Dry the hinges after showering when possible, particularly in hard-water areas where limescale can build up.

Avoid harsh chemicals, bleach, or acidic cleaners that can degrade the hinge finish or harden the gaskets prematurely.

B. Checking Hinge Screws and Plates

Over months or years of regular opening and closing, screws can settle or shift slightly.

Inspect visible screws on the hinge plates every 6–12 months.

Tighten gently if required—do not over-tighten, especially on the glass side.

If torque settings are provided by the manufacturer, follow them. Otherwise, a firm, hand-tight finish using a handheld Allen key is usually sufficient.

C. Inspecting and Replacing Hinge Gaskets Over Time

Gaskets (or pads) sit between the glass and the hinge plates. They are designed to compress slightly during installation and provide grip. Over time they may:

Harden

Flatten

Deform

Develop small tears or wear marks

These signs indicate that the gasket has reached the end of its service life.

How to Replace Hinge Gaskets

Support the door using packers, wedges, or a second person before loosening the hinge.

Loosen the hinge screws on the glass side to release pressure.

Remove the old gasket from the hinge plates.

Clean the clamping surfaces—ensure they are free from debris, cleaning residue, or old gasket fragments.

Install the new gasket set, ensuring the correct gasket thickness and shape are used for your specific hinge model.

Reclamp the hinge onto the glass and tighten the screws gradually, alternating sides to maintain even pressure.

Recheck door alignment to ensure the seal meets the frame or glass panel correctly.

Replacing gaskets is a normal part of long-term maintenance and does not indicate an installation fault.

3. Correcting Door Drop or Misalignment

Over time—usually many months or years—a frameless shower door may begin to drop by a few millimetres. This can be due to:

Natural settling of the hinge plates

Minor compression of the gaskets

Repeated daily use

Thermal expansion and contraction in the bathroom environment

Fortunately, most frameless hinges are designed with allowances for re-adjustment.

A. How to Tell if Your Door Has Dropped

Common signs include:

The door lightly touches the floor seal or threshold.

The door no longer lines up perfectly with the fixed glass.

You hear rubbing or scraping when the door swings.

B. Repositioning Glass-to-Glass Hinges

Glass-to-glass hinges use clamping pressure to hold the door in position. Small adjustments are typically straightforward.

Steps to Lift or Re-Align the Door

Support the door—place shims or packers under it to raise it slightly or hold it in the correct position.

Loosen the hinge clamp screws just enough for the glass to shift. Do not remove them fully.

Reposition the door so the gaps between glass panels are even and the door swings without rubbing.

Retighten the hinge screws gradually, alternating sides and ensuring even pressure.

Check the operation several times to ensure the alignment holds.

Minor repositioning does not harm the glass or hardware if carried out properly.

C. Repositioning Glass-to-Wall Hinges

Adjustment Method

If the door drops:

Support the weight of the door.

Loosen the wall-side screws slightly.

Lift or realign the door

Tighten the screws securely back into the wall.

If the door has dropped significantly, gasket compression may be the cause and replacing the gaskets (as described earlier) will often restore the correct geometry.

4. When Should You Replace Hinges Instead of Adjusting Them?

Frameless shower hinges are long-lasting, but replacement may be needed if:

The finish has corroded or pitted badly.

The hinge won’t maintain alignment even after tightening and new gaskets.

The hinge plates no longer clamp evenly.

For most homeowners, however, adjustments and gasket replacement are all that’s needed for many years of reliable service.

5. Tips for Long-Term Care

Wipe down hinges after showering in hard-water regions.

Periodically check that the door closes centrally and the seals meet correctly.

Avoid leaning heavy items (like towels or robes) on the door, which can strain the hinges.

Never attempt to adjust hinges without supporting the glass.

Use only manufacturer-approved gaskets to ensure correct thickness and grip.

Conclusion

Frameless glass-to-glass and glass-to-wall shower hinges are engineered to offer many years of smooth, reliable performance. With simple maintenance regular cleaning, occasional screw checks, periodic gasket replacement, and minor adjustments if the door settles over time you can keep your shower door looking and functioning like new. Understanding these maintenance steps not only protects your investment but also ensures your shower remains safe, precise, and beautifully frameless for the long term.
